ciDrone TR-22
Joined ATTA on January 2024
ciDrone_TR-22
source: ciRobotics Website
Description

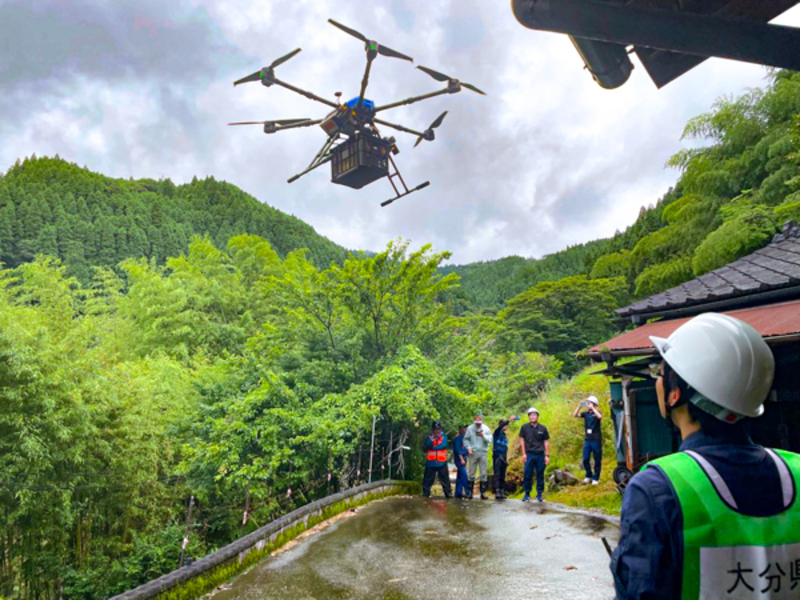

A cargo drone for applications such as disaster relief, forestry, and agriculture. Lifting up loads up to 20kg with an electric winch. All-weather support.
Details
Features and specs
Availability
Name
ciDrone TR-22
Manufacturer
ciRobotics
Release date
December 2022
Country of Origin
Japan
Core Function
Carrying
Robot series
Dimensions
unfolded: W2000*D2000*H820mm | folded: W1130*D1130*H820mm
Weight
28.5kg (without battery)
Power
[Battery] LiPo14S | | Operation hours: 30 min (hovering without payload) | Charging hours: - | Capacity: 22000mAh | Voltage: 51.8V | Charging port: USB-C | Charger input voltage: 100-240V
Connectivity
[Wi-Fi] 2.4GHx - 2.483GHz
Operation environment
Temperature: -20℃(-4℉)~+60℃(140℉) | Battery charging temperature: 0°C (+32°F) ~+45°C (+113°F) | IPX4 | Max service altitude: 2,500m above Mean Sea Level | Outdoor | All-weather
Other specifiacations
Max payload: 20.0kg | Max winch lifting capacity: 27.2kg | Winching speed: 0.75m/s | Max transmission distance: 5~30km (unobstructed, free of interference) | Max flight speed: 15 m/s (without wind) | Max wind-speed resistance: 10m/s | GNSS: GPS | Camera: Front1, Bottom1, Winch1 | Ground-based radar | 5.5 inch monitor controller | Automatic releasing hook | 30m rope | Remote control
Current availability
To Purchase/Lease
Available Countries
Japan
Industry
Public services | Professional, scientific and technical activities | Agriculture / forestry | Logistics | Delivery | Aviation and Drones
Price
Contact for more information
